8HP

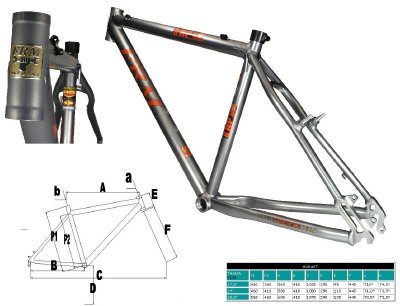

8HP MTB Frame 17" Black/Titan Anodisation - 1290 g
01.08.03.001.04.02.12

SPECIFICHE TELAIO
- Telaio Front Suspended MTB X-Country
- Tubazioni: Easton Ultralite Race
- Carro posteriore: alluminio a S
- Forcellini: CNC 3D
- Scatola movimento: 68 mm Inglese
- Dia. reggisella: 27,2 mm
- Dia. deragliatore: 31,8 mm
- Taglie: 17,5" - 19" - 20,5"
- Finitura: Anodizzato colore Titan
- Peso telaio: 1.290 gr. (19")
- Compatibilità freni: V-Brake e Disco
- Corsa suggerita forcella: 80-100 mm
Bici complete disponibili come:
2,0 - Peso bici: 9,8 kg
2,0 Disc - Peso bici: 9,9 kg
3,0 – Peso bici: 8,8 kg
3,0 Disc – Peso bici: 9,1 kg
4,0 – Peso bici: 8,4 kg
4,0 Disc – Peso bici: 8,6 kg
5,0 - Peso bici: 8,2 kg
5,0 Disc - Peso bici: 8,4 kg

- € 665,20 telaio taglie standard
- € 844,40 telaio su misura

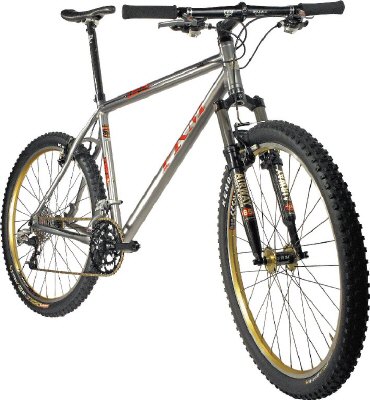

8HP Bike 3.0 V-Brake 17" Standard Configuration
01.08.03.030.04.00.02

8HP 3,0: Front Suspended for X-Country Racing. V-Brake

FRAME SPECS.
- Front suspended frame for X-Country
- Tubeset: Easton Ultralite Race
- Rear stays: S-shaped aluminium
- Dropouts: CNC 3D
- BB thread: 68 mm BSC
- Seatpost dia.: 27,2 mm
- Derailleur dia.: 31,8 mm
- Size: 17,5" - 19"- 20,5"
- Finish: Titan color anodized
- Frame weight: 1290 g. (19")
- Brake compatibility: v-brake or disc
- Suggested fork travel: : 80-100 mm
3,0 BIKE SPECS.: BIKE WEIGHT 8,8 kg.
- Fork: FRM Air-Way 85SSV BiCarbon
- Headset: FRM C-Set
- Handlebar: FRM Web-Bar 32
- Stem: FRM Web-Stem 32
- Brakes & Brake levers: FRM DP4
- Rear Der. & Shifters: SRAM X-9 rotors
- Front Der.: SRAM X-9
- Crankset and BB: FRM CU2-M Integral (TR 44-32-22 or 2x9 44-29)
- Cogset: SRAM PG-980
- Chain: SRAM PC971
- Wheelset: FRM FL-M12 ZTR UST (Notubes Olympic rims)
- Tires: Kenda Nevegal 1,9", Kharma 2,0" o Small Block 8 2,1"
- Tubes: Notubes Sealant
- Seatpost: FRM ST-M10 or ST-M11
- Saddle: FRM Aspen Ti.

- Weight: 8,8 kg

8HP Bike 5.0 V-Brake 17" Standard Configuration
01.08.03.050.04.0.02

8HP 4,0: Front Suspended for X-Country Racing. V-Brake

FRAME SPECS.
- Front suspended frame for X-Country
- Tubeset: Easton Ultralite Race
- Rear stays: S-shaped aluminium
- Dropouts: CNC 3D
- BB thread: 68 mm BSC
- Seatpost dia.: 27,2 mm
- Derailleur dia.: 31,8 mm
- Size: 17,5" - 19"- 20,5"
- Finish: Titan color anodized
- Frame weight: 1290 g. (19")
- Brake compatibility: v-brake or disc
- Suggested fork travel: : 80-100 mm
5,0 BIKE SPECS.: BIKE WEIGHT 8,2 kg.
- Fork: FRM Air-Way 85SSV BiCarbon Ti.
- Headset: FRM C-Set Team
- Handlebar: FRM Web-Bar Carbon 32
- Stem: FRM Web-Stem CF Ti.
- Brakes & Brake Levers: FRM DP4 Ti.
- Rear Der. & Shifters: SRAM X-0 rotori
- Front Der.: SRAM X-9
- Crankset and BB: FRM CU2-M Integral Ti. (44-32-22 or 2x9 44-29)
- Cogset: SRAM PG-990 11-32 o 11-34
- Chain: KMC 9X SL Gold
- Wheelset: FRM FL-M21 ZTR Aerolite UST (Notubes Olympic rims)
- Tires: Kenda Nevegal 1,9", Kharma 2,0" o Small Block 8 2,1"
- Tubes: Notubes Sealant
- Seatpost: FRM ST-M20 or ST-M21 carbon Ti.
- Saddle: FRM Black Hole

- Weight: 8,2 kg

8HP Bike 3.0 Disk 17" Standard Configuration
01.08.03.130.04.00.02

8HP 3,0 Disc: Front Suspended for X-Country Racing. Disc Brake

FRAME SPECS.
- Front suspended frame for X-Country
- Tubeset: Easton Ultralite Race
- Rear stays: S-shaped aluminium
- Dropouts: CNC 3D
- BB thread: 68 mm BSC
- Seatpost dia.: 27,2 mm
- Derailleur dia.: 31,8 mm
- Size: 17,5" - 19"- 20,5"
- Finish: Titan color anodized
- Frame weight: 1290 g. (19")
- Brake compatibility: v-brake or disc
- Suggested fork travel: : 80-100 mm
3,0 DISC BIKE SPECS.: BIKE WEIGHT 9,1 kg.
- Fork: FRM Air-Way 85SSV BiCarbon
- Headset: FRM C-Set
- Handlebar: FRM Web-Bar 32
- Stem: FRM Web-Stem 32
- Brakes: Avid Juicy 7
- Rear Der. & Shifters: SRAM X-9 rotors
- Front Der.: SRAM X-9
- Crankset and BB: FRM CU2-M Integral (TR 44-32-22 or 2x9 44-29)
- Cogset: SRAM PG-980 11-32 or 11-34
- Chain: SRAM PC971
- Wheelset: FRM FL-M12 Olympic Disc UST (Notubes Olympic rims)
- Tires: Kenda Nevegal 1,9", Kharma 2,0" o Small Block 8 2,1"
- Tubes: Notubes Sealant
- Seatpost: FRM ST-M10 or ST-M11
- Saddle: FRM Aspen Ti.

- Weight: 9,1 kg

8HP Bike 5.0 Disk 17" Standard Configuration
01.08.03.150.04.0.02

8HP 5,0 Disc: Front Suspended for X-Country Racing. Disc Brake

FRAME SPECS.
- Front suspended frame for X-Country
- Tubeset: Easton Ultralite Race
- Rear stays: S-shaped aluminium
- Dropouts: CNC 3D
- BB thread: 68 mm BSC
- Seatpost dia.: 27,2 mm
- Derailleur dia.: 31,8 mm
- Size: 17,5" - 19"- 20,5"
- Finish: Titan color anodized
- Frame weight: 1290 g. (19")
- Brake compatibility: v-brake or disc
- Suggested fork travel: : 80-100 mm
5,0 DISC BIKE SPECS.: BIKE WEIGHT 8,4 kg.
- Fork: FRM Air-Way 85SSV BiCarbon Ti.
- Headset: FRM C-Set Team
- Handlebar: FRM Web-Bar Carbon 32
- Stem: FRM Web-Stem CF Ti.
- Brakes: Avid Ultimate 160-140
- Rear Der. & Shifters: SRAM X-0 rotori
- Front Der.: SRAM X-9
- Crankset and BB: FRM CU2-M Integral Ti. (44-32-22 or 2x9 44-29)
- Cogset: SRAM PG-990 11-32 o 11-34
- Chain: KMC 9X SL Gold
- Wheelset: FRM FL-M21 Olympic Disc Aerolite UST (Notubes Olympic rims)
- Tires: Kenda Nevegal 1,9", Kharma 2,0" o Small Block 8 2,1"
- Tubes: Notubes Sealant
- Seatpost: FRM ST-M20 or ST-M21 carbon Ti.
- Saddle: FRM Black Hole

- Weight: 8,4 kg
