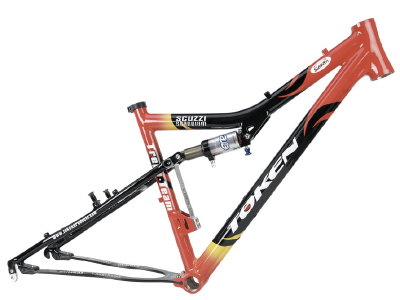

TK998C
26” Two CAMM MTB Suspension Carbon Frame
|
Material: Carbon and Ally 7005 Bondo Ergo welding
Front: Head Tube Alloy 7005, Internal headset mechanism to fit TOKEN KUDOS．ZC Carbon Headset
Down Tube: SCUZZI Carbon Tube
Seat Tube: Scandium double butted Ø27.2x31.8mm
Top Tube: Alloy 7005
Rear: Replaceable SCUZZI Carboyoke C/S, Alloy S-bend S/S, CNC Disc dropouts
Size: 17”, 19”, 21” C-T
Weight: 2.32kgs/17” with X-Fusion Shock
Air Brush color finish
The patented Two CAMM design of dual dampened rear triangle delivers 68mm of travel. The SCUZZI CARBOYOKE Chainstay eliminates the need for traditional bearing axle assemblies. This reduces weight and increases the lateral stiffness without Compromising on travel or performance
|
|
 |
|

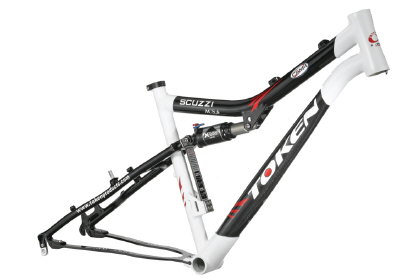

TK998SC
26” Two CAMM MTB Suspension Scandium Frame
|
Material: Scandium and Ally 7005 Bondo Ergo welding
Front: Head Tube Alloy 7005, Internal headset mechanism to fit TOKEN KUDOS．Z Alloy Headset
Down Tube: SCUZZI Scandium triple butted 4 clover profile tube
Seat Tube: Scandium double butted Ø27.2x31.8mm
Top Tube: Alloy 7005
Rear: Replaceable SCUZZI Carboyoke C/S, Alloy S-bend S/S, CNC Disc dropouts
Size: 17”, 19”, 21” C-T
Weight: 2.26kgs/17” with X-Fusion Shock
Air Brush color finish
TK998CDA Full Alloy 7005 construction, 2.34kgs/17”
|
|
|
|

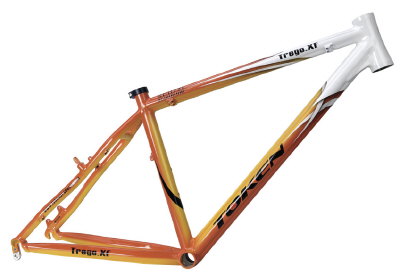

TK9619HT
26” Hardtail Scandium MTB Frame
|
|
Scandium & Alloy 7005 Bondo Ergo welding
Front: Head Tube Alloy 7005, Ø50mm with Internal headset mechanism to fit TOKEN KUDOS．Z Alloy Headset
Down Tube & Top Tube 4 clover profile Scandium Tubes
Seat TubeØ31.8x34.9mm
Rear: S-bend SCUZZI 4 clover profile Alloy 7005 S/S & C/S
Size: 17”, 19”, 21” C-T
Weight: 1.4kgs/17” raw frame only
Air Brush color finish
|
|
|
|

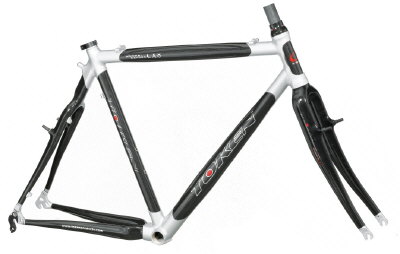

TK9008CX
Carbon 700C Cycle Cross Frame
|
|
Front: Full Carbon Cycle Cross masterpiece, sloping main triangle
Mussel-Eye profiled Top & Down Tubes for optimized stiffness
Head tube: Ø45mm with 1-1/8” Integrated mechanism to fit TOKEN OMEGA．C1 Carbon Headset
Rear: Carbon upper wishbone S/S with Monocoque cantilever brake pivots MONOBOX Carbon C/S for pedaling stiffness
Fork: Monocoque Cycle-Cross Fork TK-05CX
Carbon Seat Tube: Ø27.2x31.8mm
Size: 52.5, 54.5, 56.5, 58.5, 60.5cm C-T
Weight: 1.45kgs/52.5cm raw frame only
Air Brush color finish
|
|
|
