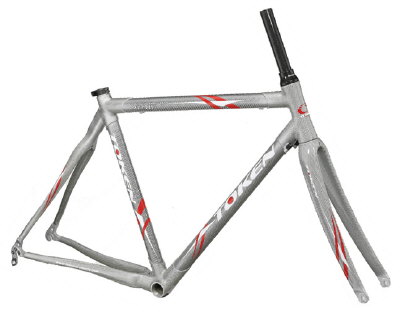

TK9729W
|
|
TK9729W
TOKEN Full White Carbon 700C Road Frame
Front & Rear White Carbon Matrix on carbon fiber tubes
Fork: Monocoque white carbon Ø45x1-1/8”, TK921W
Head Tube Ø45mm with 1-1/8” Integrated headset mechanism to fit TOKEN OMEGA．C1 Carbon Headset
Seat Tube: Ø27.2x31.8mm
Size: 48, 51, 54, 57cm C-T
Weight: 1.40kgs/54cm Frame only
Air Brush color finish
|
|
 |
|
TK9825MQ
|
TK9825MQ

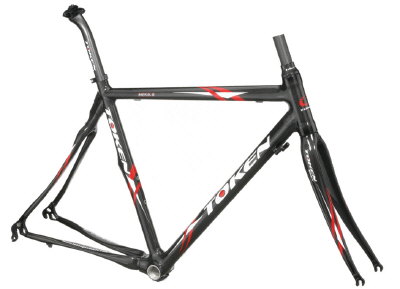

TOKEN MONO-Q Carbon Road 700C Frame
Front: New Full Carbon Monocoque Masterpiece, sloping main trangle
Rear: Rigid dual rear wishbones with S-bend MONOBOX S/S & C/S
Fork: Monocoque Full Carbon construction, Dual-Ribbed profiles TK-13MQ
Seat Post: Monocoque Carbon Seat Post Ø27.2x300mm, 1 bolt clamp TK-915
Seat Clamp: CNC 7075T6 with Ti bolt TK-SC701TI
Size: 49, 52, 55, 58cm C-T
Weight: 990g/49cm raw frame only
Air Brush color finish
|
|
|
|

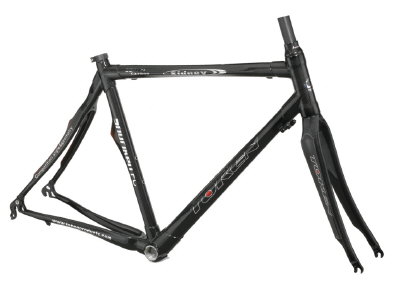

TK9826FC
|
|
TK9826FC
TOKEN Full Carbon Road 700C Frame
Front: Carbon Lugs with new shape Carbon T/T, D/T & S/T
Head Tube: Ø45mm with 1-1/8” Integrated headset mechanism to fit TOKEN OMEGA．C1 Carbon Headset
Seat Tube: New design Carbon wing type Ø27.2x31.8mm
Rear: New design MONOBOX wing type S/S & new shape MONOBOX C/S with CNC dropout
Fork: Full Carbon wing type Ø45x1-1/8", TK-26MQ
Size: 49, 52, 55, 58cm C-T
Weight: 1.05g/52cm raw frame only
Air Brush color finish
|
|
|
|

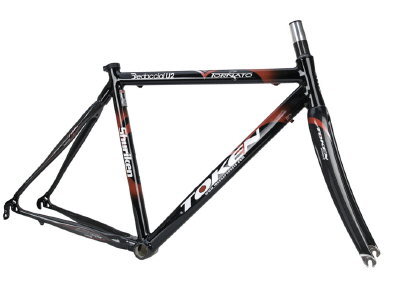

TK997
|
|
TK997
Shuriken Dedacciai U2 Road 700C Frame
Superlite Dedacciai U2 & Carbon Black Box construction
Head Tube: Ø45mm with 1-1/8” Integrated headset mechanism to fit TOKEN OMEGA．C1 Carbon Headset
Top Tube & Down Tube: Dedacciai triple butted Aero Tubes
Seat Tube: Ø32.4x35mm
Rear Dedacciai U2 Carbon Black Box C/S, S/S with Alloy forged dropouts
Sloping: 1.4°
Size: 48, 50, 52, 54, 56, 58cm C-T
Weight: 1.21kgs/54cm Frame with Air Brush
Fork: Monocoque Carbon Fork TK921
Air Brush color finish
|
|
|
|

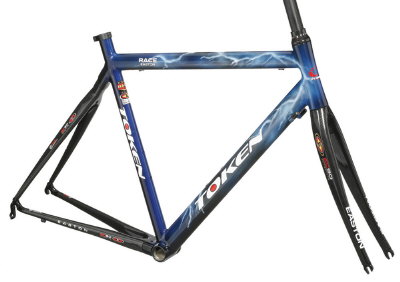

TK995ES
|
TK995ES
EASTON RACE Road 700C Frame
Ultralite EASTON RACE Tubes & EASTON Carbon EC90 CNT composite construction
Head Tube: Ø45mm with 1-1/8” Integrated headset mechanism to fit TOKEN OMEGA．C1 Carbon Headset
Top Tube & Down Tube: EASTON Pear triple butted Aero Tubes
Seat Tube: EASTON triple butted Ø27.2x31.8mm
Rear EASTON Carbon EC90CNT composite C/S & S/S with Alloy CNC dropouts
Sloping: 4°
Size: 48, 51, 54, 57, 60cm C-T
Fork: Superlite EASTON Carbon EC90 Fork
Weight: 1.16kgs/54cm Frame with air brush
Air Brush color finish
|
|
|
|

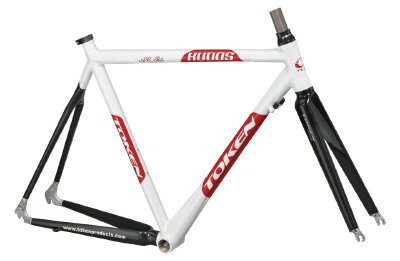

TK9315
|
TK9315
KUDOS Carbon/Alloy 700C Road Frame
Material: Kinesium and Carbon Fiber
Front: Head Tube Ø46mm with 1-1/8” Integrated headset mechanism to fit TOKEN OMEGA．A2 Alloy Headset
Hydroformed Top and Down Tubes
Seat TubeØ27.2x31.8mm
Rear: Monocoque Carbon seat stay and chain stay
Size: 48, 51, 54, 57, 60cm C-T
Weight: 1.58kg/56cm
Fork: Aero profile Carbon Fiber with Alloy steerer construction
Air Brush color finish
Kinesium tubing is developed by Kinesis. The frames by its 10% lighter than Alloy 7005 and 25% stronger than Alloy 7005
|
|
|
|

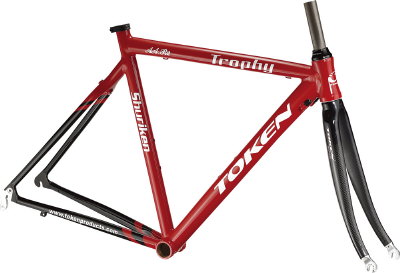

TK9304
|
|
TK9304
Trophy Kinesium Alloy Frame & Kit
Material: Superlight Kinesium Frame Tubing
Front: 46mm Head Tube with 1-1/8" Integrated Headset mechanism to fit TOKEN OMEGA-A2 Headset
Seat Tube: 27.2x31.8mm
Rear: MONO Seat Stay
Size: 48, 50, 52, 54, 56, 58, 60cm (C-T)
Fork: Carbon Fiber Blades, Alloy Steerer
Air Brush Color Finish
|
|
|
|
|
