GAUGE
|
|
Integrated Headset Gauge
Stainless Steel Material
To check the 1” & 1-1/8” Integrated Head Tube
The details listed as follows:
-Ø38x45° to check the depth of 1” Integrated head tube withØ38x45° bearings
-Ø41x45° to check the depth of 1-1/8” Integrated head tube withØ41x45° bearings
-Ø41.8x45° to check the depth of 1-1/8” Integrated head tube withØ41.8x45° bearings
-Ø44x45° to check the depth of 1-1/8” Internal head tube withØ44x45° bearings
Weight: 36g
|
|
 |
|

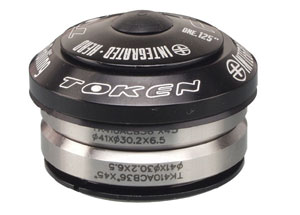

OMEGA A1
|
OMEGA．A1
Alloy 1-1/8" Integrated Headset with Water Seal
Cane Creek compatible for Head Tube Ø45mm
Top Cover: Ø28.6x45mm Alloy 6061 CNC machined
High Rolling Sealed ACBearings TK410A:Ø30.2x41x7x45°
Ø30mm 7075T6 CNC crown race
Height: 10mm, 20mm, 30mm
Weight: 58g (10mm, w/o Cap)
OMEGA．A2 : Ritchey Compatible for Head Tube Ø 46mm - 18 EURO
OMEGA．A3 : Campagnolo Compatible for Head Tube Ø 46mm - 19 EURO
|
|
|
|

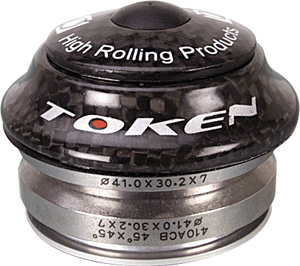

OMEGA C1
|
OMEGA．C1
Carbon 1-1/8” Integrated Headset with Water seal
Cane creek Compatible for Head Tube Ø45mm
Top Cover: Ø28.6x45mm Carbon Fiber construction
High Rolling Sealed ACBearings TK410A:Ø30.2x41x7x45°
Ø30mm 7075T6 CNC crown race
Height: 10mm, 18mm, 28mm for option
Weight: 55g (10mm, w/o Cap)
OMEGA．C2 : Ritchey Compatible for Head Tube Ø 46mm - 38 EURO
OMEGA．C3 : Campagnolo Compatible for Head Tube Ø 46mm - 42 EURO
|
|
|
|

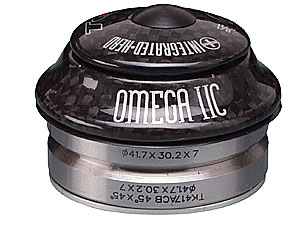

OMEGA C2
|
OMEGA．C2
Ø46 Carbon Water Seal 1-1/8" Integrated Headset
Ø28.6X30X46mm
Top Cover: Ø28.6x46 Carbon construction
Crown Race: Ø30mm 7075 T6 CNC machined
High Rolling Sealed ACBearings
TK418A: Ø30.2x41.8x8x45ºx45º
THxTID: 3.2x45ºx42.0
BHxTID: 7.2x45ºx42.0
Height: 12mm
Weight: 56g (w/o Alloy Cap)
OMEGA．C1 : Cane Creek Compatible for Head Tube Ø 46mm
OMEGA．C3 : Campagnolo Compatible for Head Tube Ø 46mm
|
|
|
