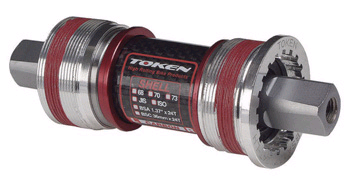

TK866CM
|
| TK866CM |
| JIS Square Cromo Axle BB |
CNC machined hollow SCM4140 satin axle
Carbon body, alloy cold forged Cups with Water seals
2pcs high rolling sealed bearings
JIS 2° Square axle lengths: 103, 107.5, 110.5, 113.5, 116mm with BSA1.37”x24T R/L Cups for 68mm width BB Shell
Weight: 210g (103mm w/o bolts)
CNS patent #216105 |
|
|
 |
|
TK867CM
|
| TK867CM |
| Campagnolo Compatible ISO Square Cromo BB |
CNC machined hollow SCM4140 satin axle
Carbon body, alloy cold forged cups
2pcs high rolling sealed bearings
ISO 1.8º Square axle lengths
102mm with BSA1.37"x24T R/L cups for 68mm BB shell
102,111,115.5mm with BSC/Ita.36mmx24T R/R cups for 70mm BB shell
Chainline: 43.5mm/Double, 46mm/Triple & Compact
Seat Tube: Ø28.6mm/102mm, 111mm
Seat Tube: Ø32~35mm/115.5mm
Weight: 210g (102mm, w/o bolts)
CNS patent #216105 |
|
|
|
|

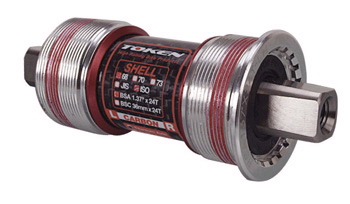

TK868CT
|
| TK868CT |
| JIS Titanium Square Axle BB |
CNC machined hollow 6/4 Ti Square axle
Carbon body, alloy cold forged Cups with Water seals
2pcs high rolling sealed bearings
JIS 2° Square axle lengths: 103, 107.5, 110.5, 113.5, 116mm with BSA1.37”x24T R/L Cups for 68mm width BB Shell
Weight: 155g (103mm w/o bolts)
CNS patent #216105 |
|
|
|
|
TK869CT
|
| TK869CT |
| Campagnolo Compatible ISO Titanium Square Axle BB |
CNC machined hollow 6/4 Ti Square axle
Carbon body or Alloy body, alloy cold forged Cups with Water seals
2pcs high rolling sealed bearings
Chainline: 43.5mm/Double, 46mm/Triple & Compact
ISO 1.8° Square axle lengths: 102, 111, 115.5mm
102mm with BSA1.37"x24T R/L cups for 68mm BB shell
102,111,115.5mm with BSC/Ita.36mmx24T R/R cups for 70mm BB shell
Seat Tube: Ø28.6mm/102mm, 111mm
Seat Tube: Ø32~35mm/115.5mm
Weight:155g(102mm w/o bolts)
CNS patent #216105 | |
|
|
|
|

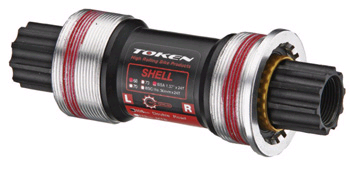

TK872AL
|
| TK872AL |
| Cromo ISIS Drive BB |
CNC machined hollow SCM4140 Spindle with M15 thread
Alloy body, Alloy cold forged cups
2pcs high rolling sealed bearings
Spindle length 108mm for Double Road
Shell width 68xBSA1.37”x24T, R/L cups
Shell width 70xIta36mmx24T, R/R cups
Chainline: 43.5mm
Weight: 205g
TK874AL Spindle length 118mm for Triple Road |
|
|
|
|

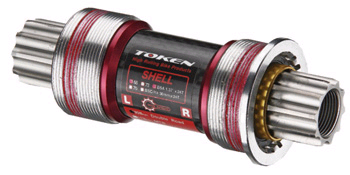

TK872CT
|
| TK872CT |
| New Titanium ISIS Drive BB |
CNC machined hollow 6/4Ti Spindle with M15 threaded
Carbon body, Alloy cold forged cups
2pcs high rolling sealed bearings
Spindle length 108mm for Double Road
Shell width 68xBSA1.37”x24T, R/L cups
Shell width 70xIta36mmx24T, R/R cups
Chainline: 43.5mm
Weight: 140g
Cemamic Bearings for option(#870TC |
|
|
|
|

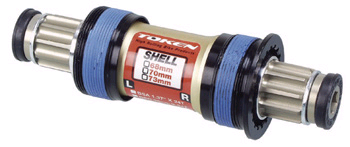

TK872SC
|
| TK872SC |
| Improved Scandium ISIS Drive BB |
CNC machined hollow Scandium spindle with M11.3 7075 X-Long bolts
Alloy body, Alloy cold forged cups
2pcs high rolling sealed bearings
Spindle length 108mm for Double Road
Shell width 68xBSA1.37”x24T, R/L cups
Shell width 70xIta36mmx24T, R/R cups
Chainline: 43.5mm
Weight: 138g
TK874SC Spindle length 118mm for Triple Road |
|
|
|
|

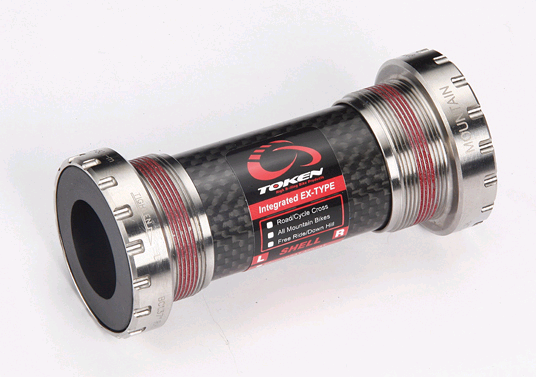

TK877TC
|
| TK877TC |
| TITANIUM EXTERNAL BOTTOM BRACKET |
|
New design to use with Integrated External Cranksets
Shimano Compatible
Titanium Cups, Tiramic Bearings
BSA1.37"x24T for MTB, FR, DH to use 68/73mm shell
Weight: 125g |
|
| |
|
|
|
|

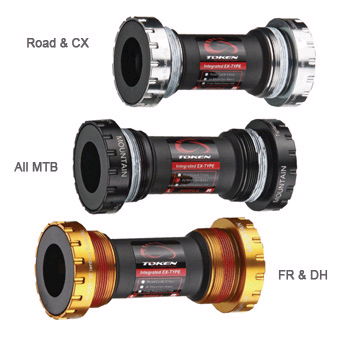

TK877EX
|
| TK877EX |
| EX-TYPE Bottom Bracket |
Specially designed for use with integrated cranksets
Compatible with Shimano groups
Durable forged aluminum cups CNC machined
Double sealed cartridge bearings construction
TK877EX/Grey anodized for Road & CX
(Compatible Dura Ace, Ultegra, 105)
TK877EX/Black anodized for all mountain
(Compatible XTR, XT, LX)
TK877EX/Gold anodized for FR & DH
(Compatible Hone, Saint)
BSA1.37"x24T for Road & CX to use 68mm shell
ITA.36mmx24T for Road to use 70mm shell
BSA1.37"x24T for MTB, FR, DH to use 68/73mm shell
Weight: 89g/Road, 95g/MTB
SKF bearings for option
Ceramic Bearings for option(#6805TC) |
|
|
|
|
|
