TK832W
TK832SW
TK832W
JIS Square BB
  • 10B21 Cold forged axle
  • Steel body, Steel cups with water seal
  • 2pcs high rolling sealed bearings
  • JIS 2ﾟ square axle lengths: 118, 119, 122.5, 127.5, 132mm with BSA1.37”x24T R/L cups for shell width 68mm
  • Weight: 345g (122.5mm)
    •

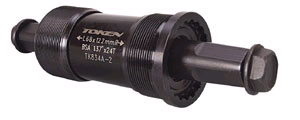

    TK834
    TK834
    TK834
    JIS Square Cromo BB for Exercise
  • SCM4140 CNC machined solid black axle
  • Steel body, steel cold forged cups
  • 2pcs high rolling sealed bearings
  • JIS 2º square for 68mm width BB shell only
  • Axle length: 122mm with BSA 1.37"x 24T steel cups
  • Weight:360g
    •

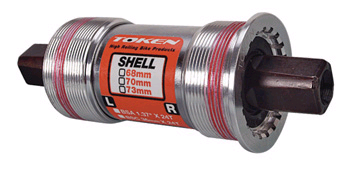

    TK836AL
    TK836AL
    TK836AL
    JIS Square BB
  • 10B21 Cold forged axle
  • Steel body, Alloy cold forged cups
  • 2pcs high rolling sealed bearings
  • JIS 2ﾟ square axle lengths: 118, 119, 122.5, 127.5, 132mm with BSA1.37”x24T R/L cups for shell width 68mm
  • Weight: 260g (110.5mm)
    •

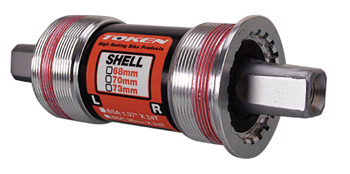

    TK838HAL
    TK838HAL
    TK838HAL
    JIS Chromoly Square Axle BB
  • CNC machined hollow SCM4130 satin axle
  • Alloy body, Alloy cold forged cups
  • 2pcs high rolling sealed bearings
  • JIS 2° square axle lengths: 107.5, 110.5, 113.5, 116mm with BSA1.37”x24T R/L cups for 68mm width BB shell
  • Weight: 220g (110.5mm)
    •

    TK851BC
    TK851BC
    TK851BC
    IBT SUJ2 JIS Square BB
  • CNC machined hollow SUJ2 axle
  • SUJ2 Integrated Bearing Technology (IBT) construction
  • SUJ2 chrome steel ball Ø3/16”x9pcs, bigger & stronger
  • JIS 2° Square axle lengths: 107.5, 110.5, 113.5, 116, 118, 122.5, 127.5mm with BSA1.37”x24T R/L cups for BB shell width 68mm
  • Weight: 290g (110.5mm)
    •

    TK852NB
    TK852N
    TK852N B
    Needle Bearing IBT SUJ2 JIS Square BB
  • CNC machined hollow SUJ2 axle
  • Right side with needle bearing; Left side IBT construction
  • JIS 2° Square axle lengths: 107.5, 110.5, 113.5, 116, 118, 122.5, 127.5mm with BSA1.37”x24T R/L cups for BB shell width 68mm
  • Weight: 250g (110.5mm)
    •

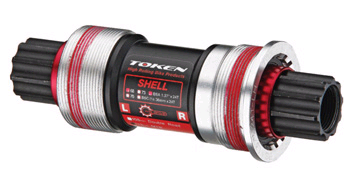

    TK873AL
    TK873AL
    TK873AL
    Cromo ISIS Drive BB
  • CNC machined hollow SCM4140 spindle with M15 threaded
  • Alloy body, Alloy cold forged cups
  • Right cup with X-Long sealed bearings; Left cup with normal sealed bearing
  • Spindle length 113mm for Triple CX, MTB
          -Shell width 68xBSA1.37”x24T, R/L cups
  • Chainline: 48mm
  • Weight: 230g

  • TK874AL 118mm for Heavy MTB, DH & FR
    •

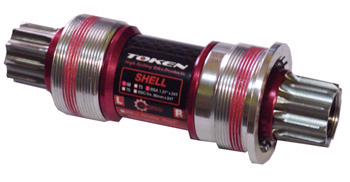

    TK873CT
    TK873CT
    TK873CT
    Titanium ISIS Drive BB
  • CNC machined hollow 6/4Ti spindle with M15 threaded
  • Carbon body, Alloy cold forged cups
  • Right cup with X-Long sealed bearings; Left cup with normal sealed bearing
  • Spindle length 113mm for Triple CX, MTB
          Shell width 68xBSA1.37”x24T, R/L cups
  • Chainline: 48mm
  • Weight: 160g

  • Cemamic Bearings for option(#870TC)
    •

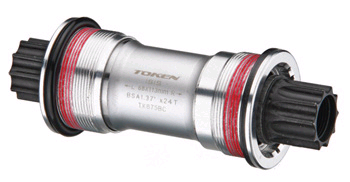

    TK875BC
    TK875BC
    TK875BC
    Multipurpose IBT SUJ2 ISIS Drive BB
  • CNC machined hollow SUJ2 spindle
  • SUJ2 Integrated Bearing Technology (IBT) construction
  • Alloy cold forged cups
  • Spindle lengths:
          113mm for Triple XC, MTB
          118mm for Heavy MTB, Down Hill & Free Ride
          -Shell width 68/73xBSA1.37”x24T, R/L cups
  • Chainline: 48mm/CX, MTB; 50.5mm/DH, FR
  • Weight: 250g (118mm)
    •

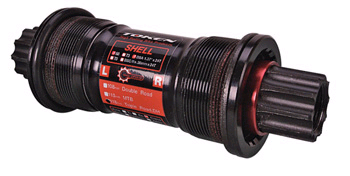

    TK876AL
    TK876AL
    TK876AL
    Multipurpose Cromo ISIS Drive BB
  • CNC machined hollow SCM4140 spindle with M15 threaded
  • Alloy 68/73mm body, alloy cold forged cups
  • Right/Left cups with X-Long sealed bearings
  • Spindle lengths:
          113mm for Triple XC, MTB; Chainline 48mm
          118mm for Heavy MTB, Down Hill & Free Ride; Chainline 50.5mm
          123mm for Trial
          -Shell width 68/73xBSA1.37”x24T, R/L cups
  • Weight: 255g (118mm)

  • Cemamic Bearings for option(#870TC)
    •

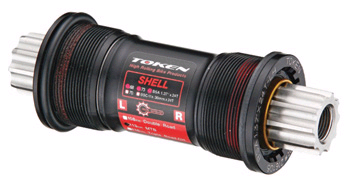

    TK876AT
    TK876AT
    TK876AT
    Multipurpose Titanium ISIS Drive BB
  • CNC machined hollow 6/4Ti spindle with M12 threaded
  • Alloy body, Alloy cold forged cups
  • Right/Left cups with X-Long sealed bearings
  • Spindle length:
          113mm for Triple CX, MTB; Chainline 48mm
          118mm for Heavy MTB, Down Hill & Free Ride; Chainline 50.5mm
          123mm for Trial
          -Shell width 68xBSA1.37”x24T, R/L cups
  • Weight: 213g (113mm)

  • Cemamic Bearings for option(#870TC)
    •

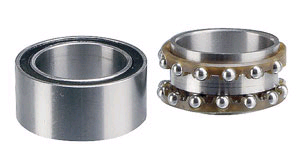

    XL01
    XL01
    XL-01
  • X-Long, High Rooling Sealed Bearing
  • Ø21.5x14x31 for ISIS drive BB
  • Durability & longevity
    •

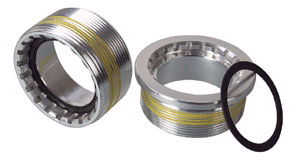

    CUPS
    CUPS


    TK873CTC - CERAMIC BALLS
    TK873CT
    TK873CT C
    Titanium ISIS Drive BB
  • CNC machined hollow 6/4Ti spindle with M15 threaded
  • Carbon body, Alloy cold forged cups
  • Right cup with X-Long sealed bearings; Left cup with normal sealed bearing
  • Spindle length 113mm for Triple CX, MTB
          Shell width 68xBSA1.37”x24T, R/L cups
  • Chainline: 48mm
  • Weight: 160g

  • Cemamic Bearings for option(#870TC)
    •

    TK873SC
    TK873CT
    TK873SC
    SCANDIUM ISIS Drive BB MTB E DH






    SF
